If the user does not remove the card within the set waiting time, the product features of the automatic card collecting machine in the parking lot will automatically put the card into the card bin. The waiting time is 30 seconds, 60 seconds, and 90 seconds.
Technical Parameters:
|

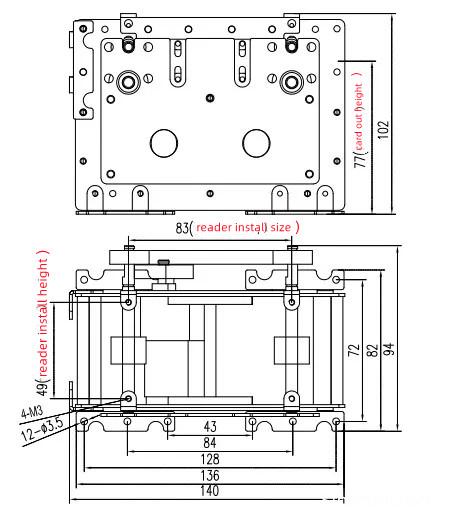

Dimension
|
140*78*102mm
|
|
thickness of card
|
0.3~2.0mm
|
|
ports
|
low electrical level I/O and RS232
|
|
application
|
signal output when card under reader.Pulse output when receive successfully
|
|
working voltage
|
DC24v 1a
|
|
working Temperature
|
-30 ℃ ~ 70 ℃
|
|
warranty
|
1 year |

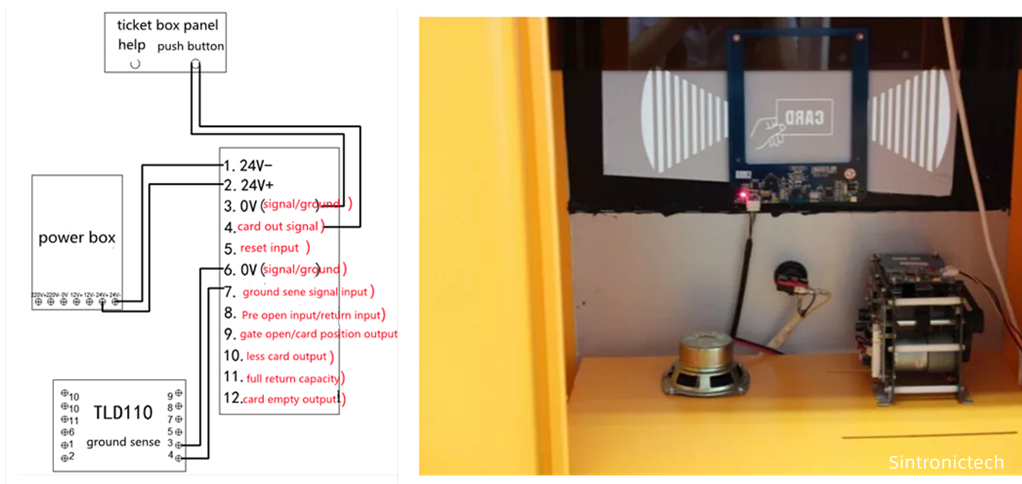

A: In connection with ticket box
Smart parking Card collector terminal 3 and terminal 4 wire to ticket box com and signal in port
B:In connection with boom barrier gate
Parking Card collector terminal 6 and 9 wire to boom gate com and open port.
Application:
Our smart card collect machine is mainly use for our parking ticketing system and it is also widely use in bank, automatic vending machine, metro station
