Reader

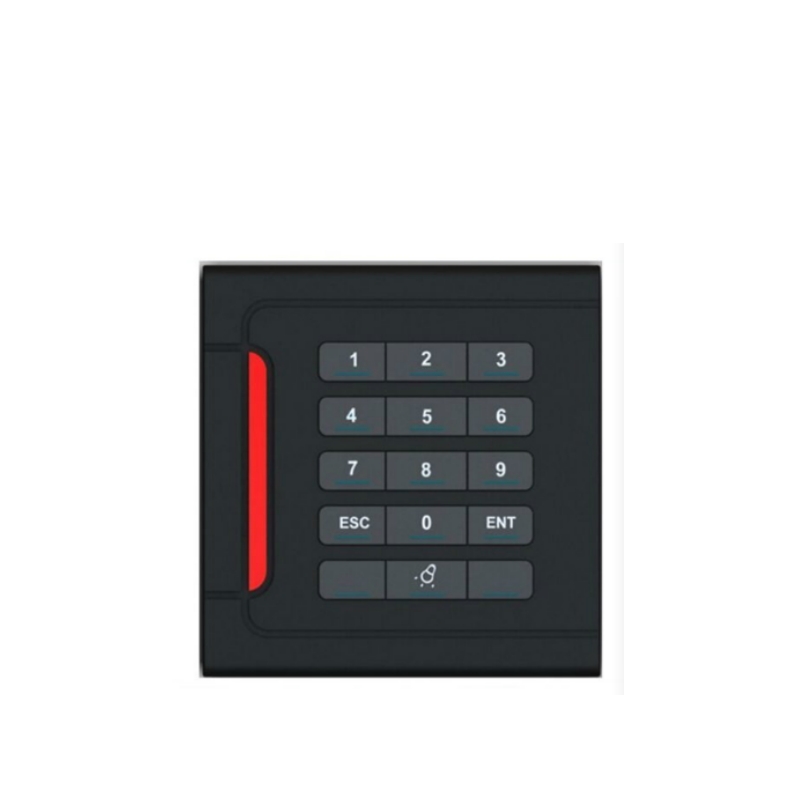

Keypad Reader

password
id card
Product description: We're professional Keypad Reader manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

Technical Parameter
Reader-04Keypad
Read Range:Up to 5-10 CM

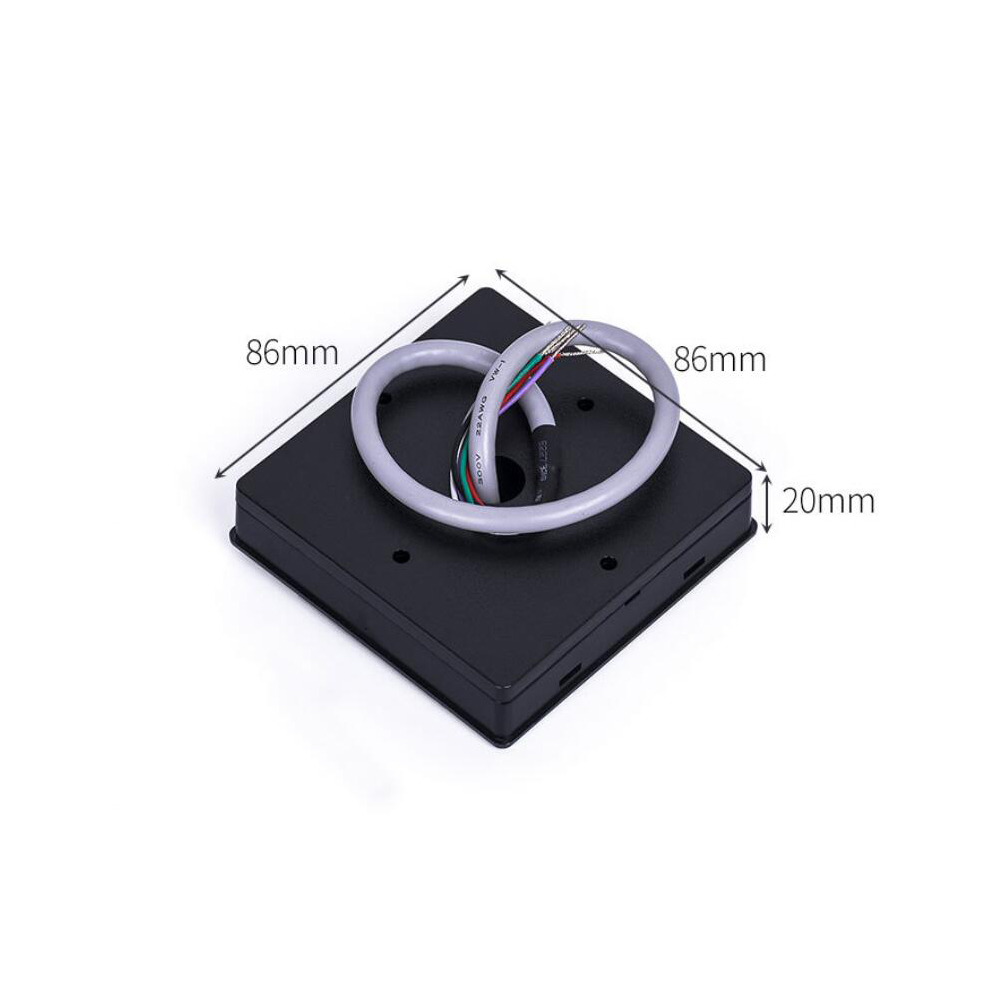

Size:KR102E:86*86*20 mm
Reading Time:≤200ms
Input Port:External LED Control,External Buzzer Control
Output Port:KR102E: 26/34bit Wiegand (Default)
Power/Current:DC12V / Max.70mA
LED:Red and Green LEDs
Operating Temperature:-20°C to 65°C(-10° to +70°C)
Material:ABS+PC with texture
Operating Humidity:10% to 90% relative humidity ,non-condensing
Beeper:Yes

Operating Humidity:IP65

Feature
1.ID/IC card swipe verification
Advanced anti-crash circuit design, anti-surge protection, anti-misconnection protection.The buzzer sound is clear and loud, and will not be disturbed.

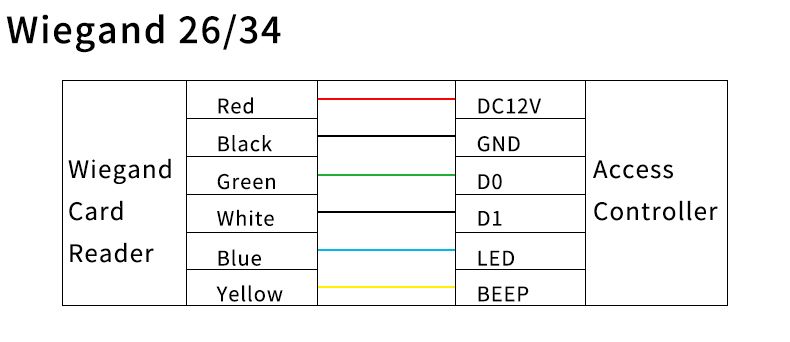

2.Wiegand 26/34
Support Wiegand 26 and Wiegand 34, just short the gray wire to ground or leave it in the air to switch between Wiegand 26/34

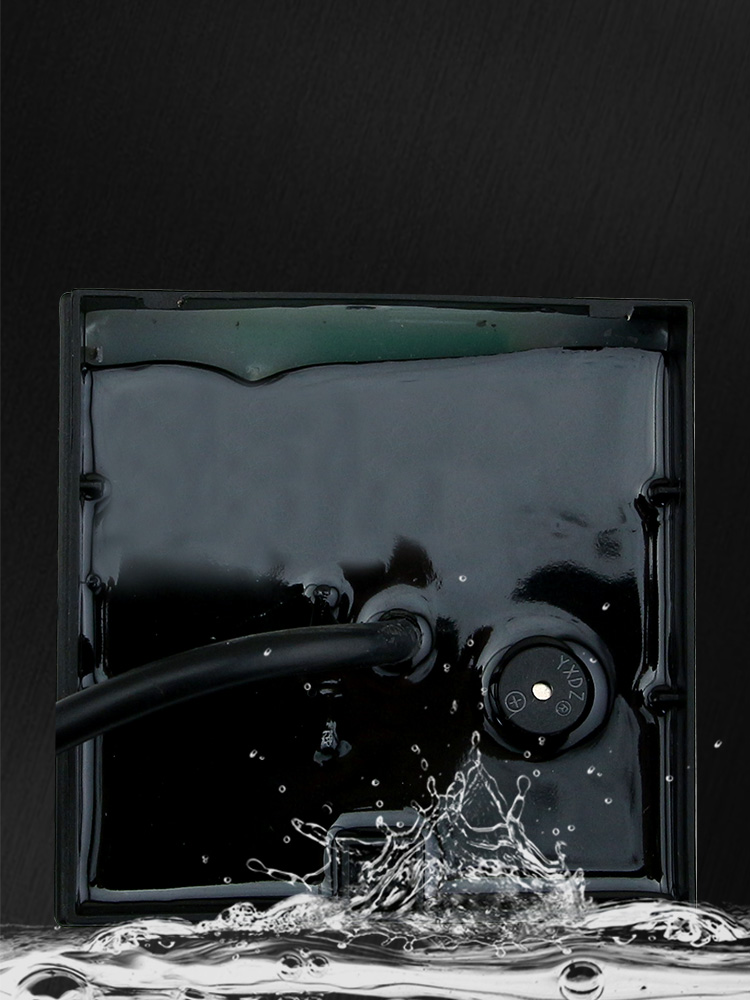

3.Internal waterproof design
Phillips screw at the bottom, easy to install; the output adopts glass discharge tube and semiconductor discharge circuit, which is resistant to electrostatic shock; the internal black resin glue package (can be effectively waterproof), can be used indoors and outdoors

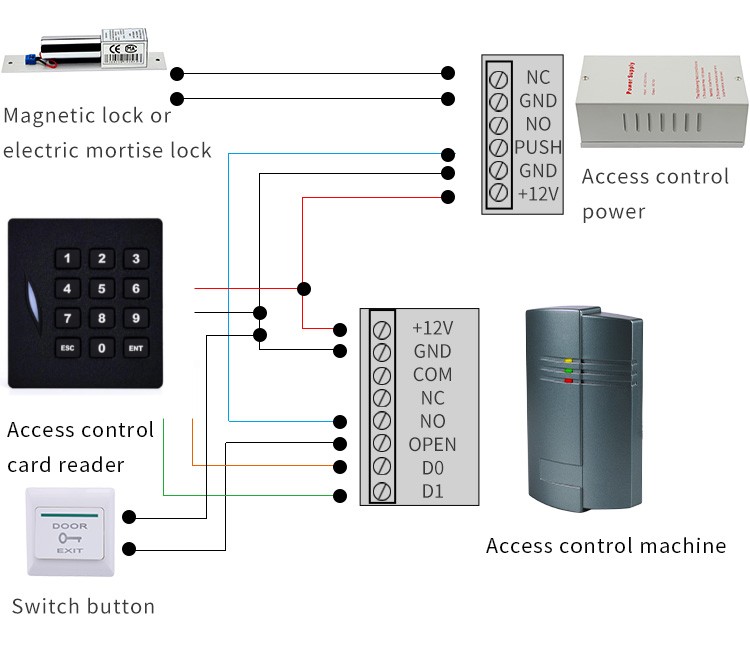

Wiring Diagram
