This door lock is special in design with durable material. It can protect your home or business shops. Low operational and standby current. It's especially suitable for wooden, glass and metal doors.

Access Control Electric Magnetic Door Lock product ranges

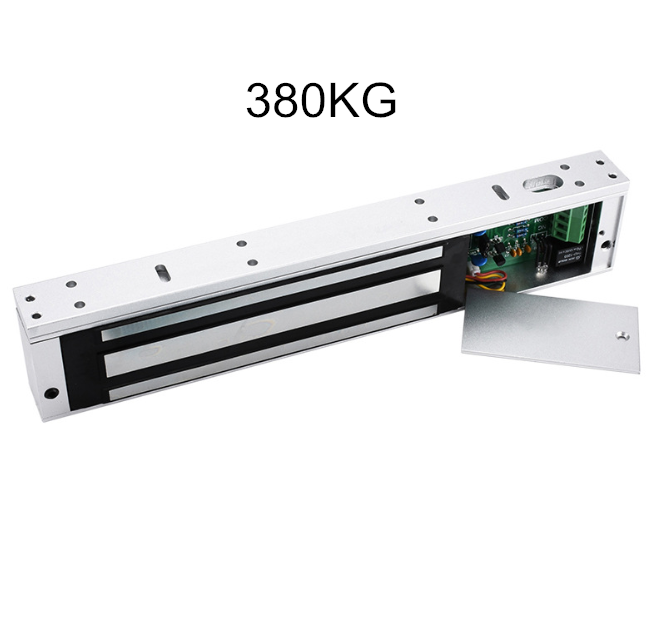

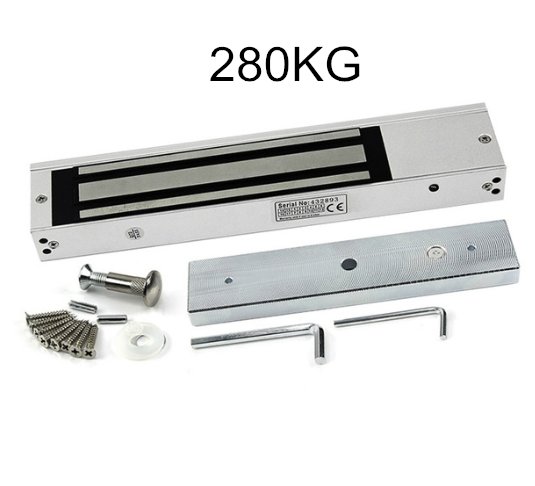

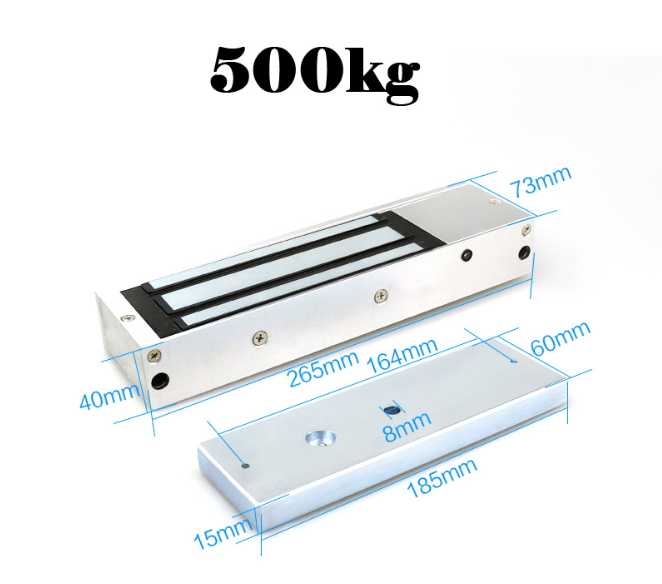

60KG, 180KG (350lbs),280KG,350kg,500kg  12V ,24VElectric Lock Holding Force High Quality

Technical Parameters:
Material: Aluminium Alloy
Working Voltage: DC12V
Working Current: 380-500mA
Working temperature: -20℃ to 55℃
Time of unlock: ≤1s
Safe Mode: NC mode(Fail-safe type, unlocked when power off, locked when power on.)
LED Working Indicate Light: none

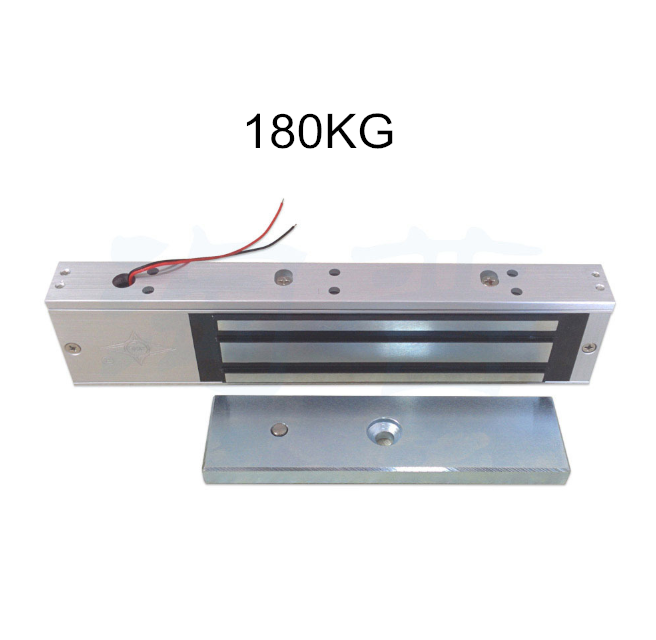

Holding Force: 180KG/350lbs,(280KG,350KG,500KG,60KG OPTIONAL )
Waterproof: yes, can be installed at outside
Signal Feedback: not support
Time Delay: without

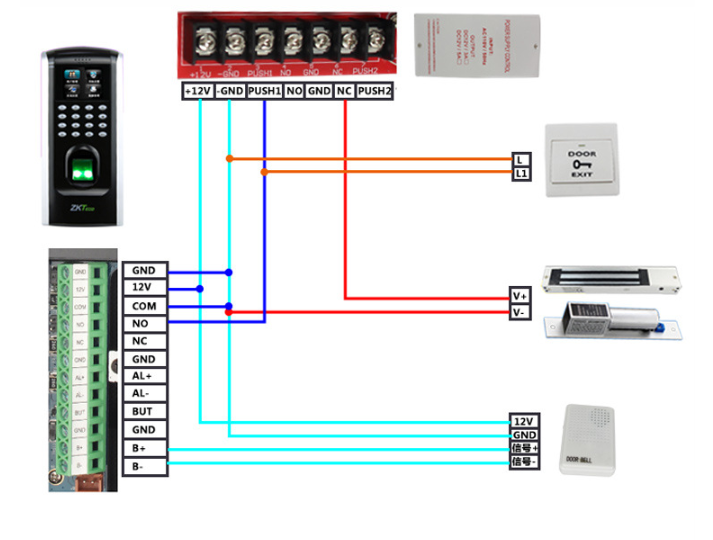

Function: can be used with building intercom, door access control system

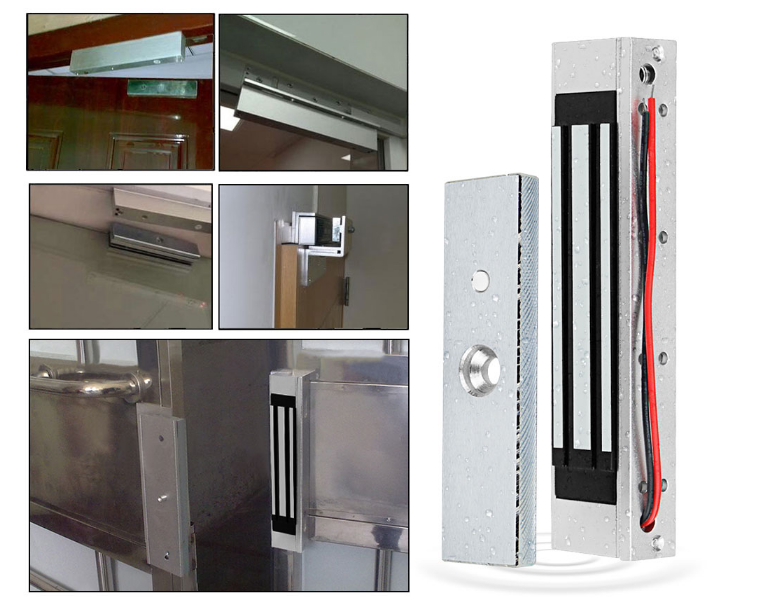

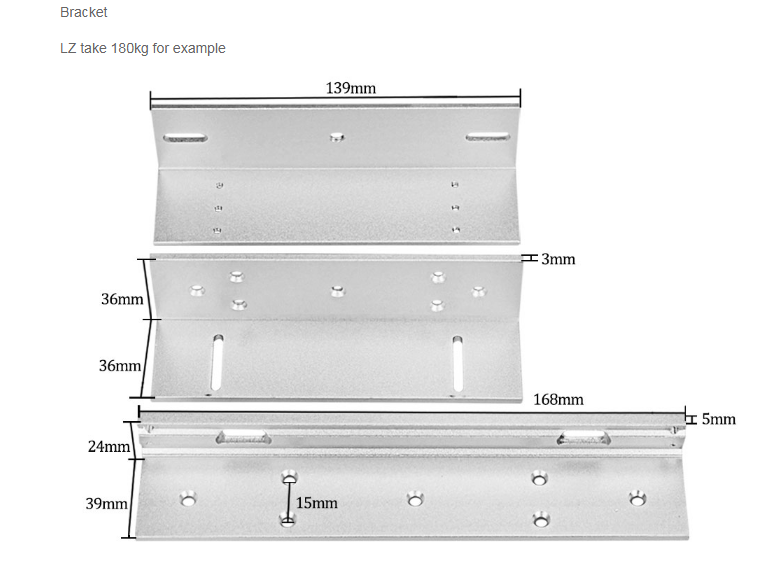

Suitable For: Wooden, metal, security, glass door etc (frameless doors need to work with bracket)
Installation: unfold install mode (Don't need to punch a hole.)
Dimension: 172*40*21mm/ 130*32*11mm(REFERENCE FOR 180KG)

Features:
1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Especially suitable for wooden/ glass/ metal/ security doors.
4. It is made from durable and high aluminum alloy material, durable for use
5. Can be opened by push button, remote controller, etc.
6. Built-in reverse current protection device (MOV).
7. Waterproof, can be install outside. Suitable for wooden, glass, metal, security door.

Applications
