Technical Parameters:

Brand Positioning	Industrial use

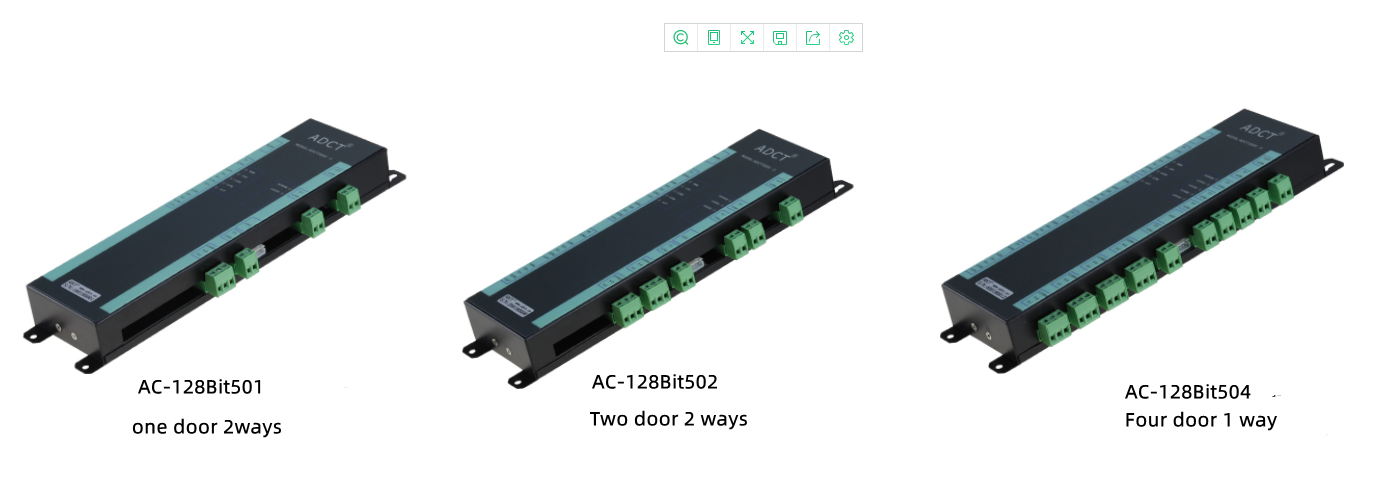

Function	For 1 door entry by card and exit by push button or both by card	For 2 door entry by card and exit by push button or both by card	For 4 door entry by card and exit by push button
Size(mm)	160*106	160*106	160*106
Reader Capacity	1 pair	2 pairs	4 pairs
Power box	273*228*65mm 12V3-5A
Max Reed to controller distance	Within 100 meter and 80 meter is better
User Capacity	20,000
Record Capacity	100,000
Max Distance between controller	In the same LAN
Work environment	-35-40 degrees

Features:
1. Powerful, high-speed pure TCP/IP communication
Innovative elimination of 485, leading access control into the pure TCP/IP era,
Distance is no longer a problem, you can use the internet anywhere
interconnection.
The speed is increased by 100 times, even for large systems with thousands of doors
The card swiping record can also be reported instantly in real time.
2.Thickened double-layer iron shell shielding design
Double-layer metal shell to protect the control board,
The thickness of the chassis shell is 1.2mm, which is nearly 1/3 thicker than the ordinary chassis.
Although the cost is greatly increased by 40%, it can shield more than 90% of the electromagnetic interference
So it's all worth it.
3.Software and hardware communication encryption
The encrypted communication between the computer and the controller is designed, and the illegal computer cannot operate even if the software is installed.
Even if the password is lost, the manufacturer cannot crack it, so your password must be kept in a safe place.

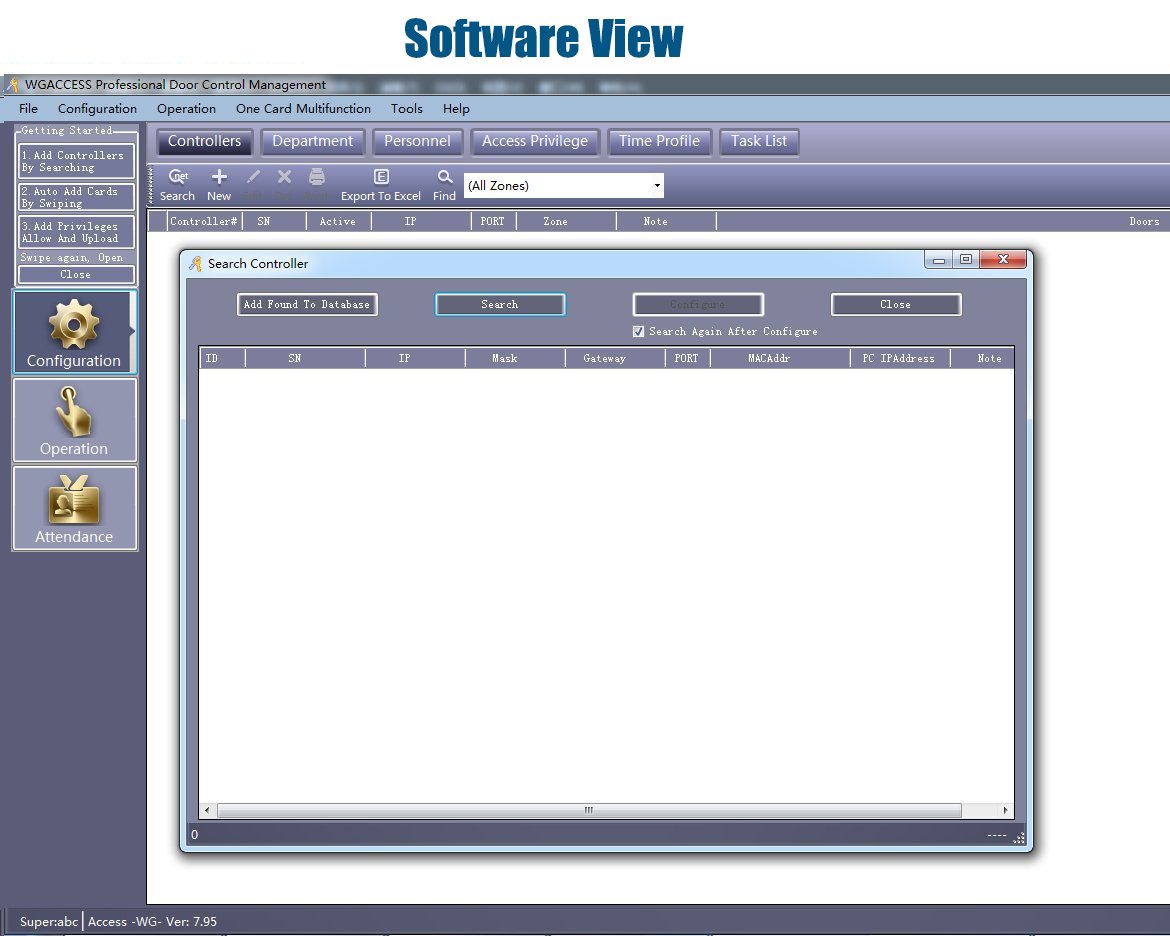

4.Software classification management
Advanced administrator custom authorization low-level
The administrator's operating authority and password,
The low-level administrator receives the
under the supervision of a senior administrator,
while improving work efficiency
Ensure information security.
5.Database automatic backup
In the ACCESS database, the software automatically backs up the latest data twice and the most original data twice by default.
At the same time, you can also customize and manually back up data for any period of time, so that your data will never be lost.
