Product description: We're professional Elevator Multi Door Access Controller manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For pricelist, contact us now.
INQUIRY

Technical Parameters:

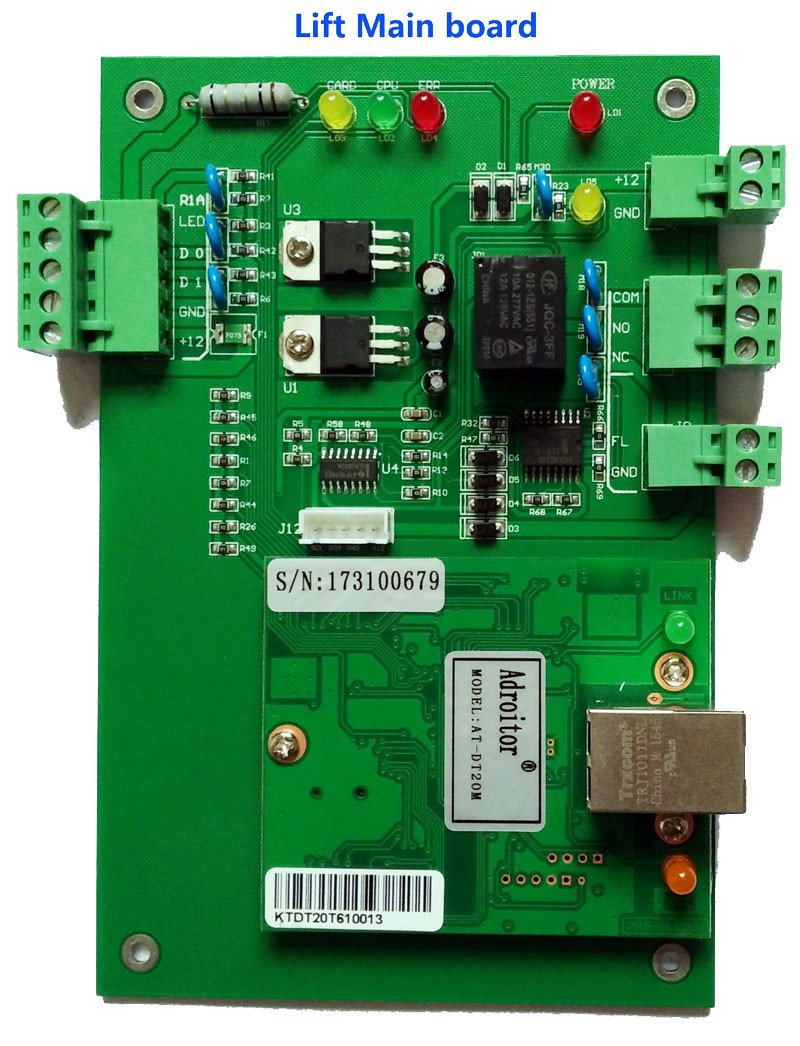

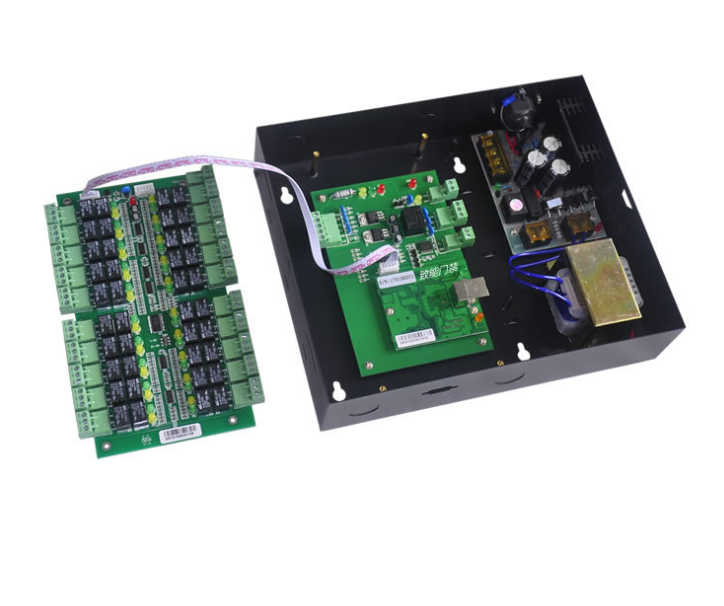

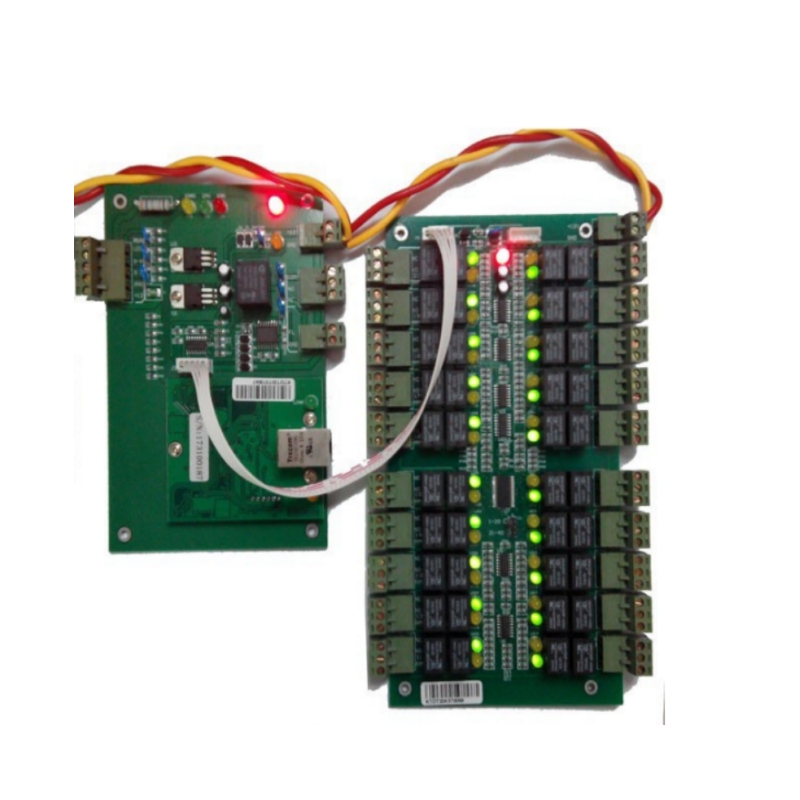

Our controller system is consist of main board+extended board which can have 20 floors and 40 floors elevator control
For 20 floors solutions it need 1 unit of main board+1 unit of extended board
For 40 floors solution it need 1 unit of main board+2 unit of extended board

Model	AC-20TCP
Apply to	WGaccess management software
Card capacity	20000
Log capacity	100000
Communications	TCP/IP
The largest networking sets	unlimited
Input	1 Wiegand 26 bit (34 bit, etc.) format card reader or other biometric device
Packing	neutral
Circuit board size	164 x 106 mm
Fire signal input	1
Power supply	DC12V

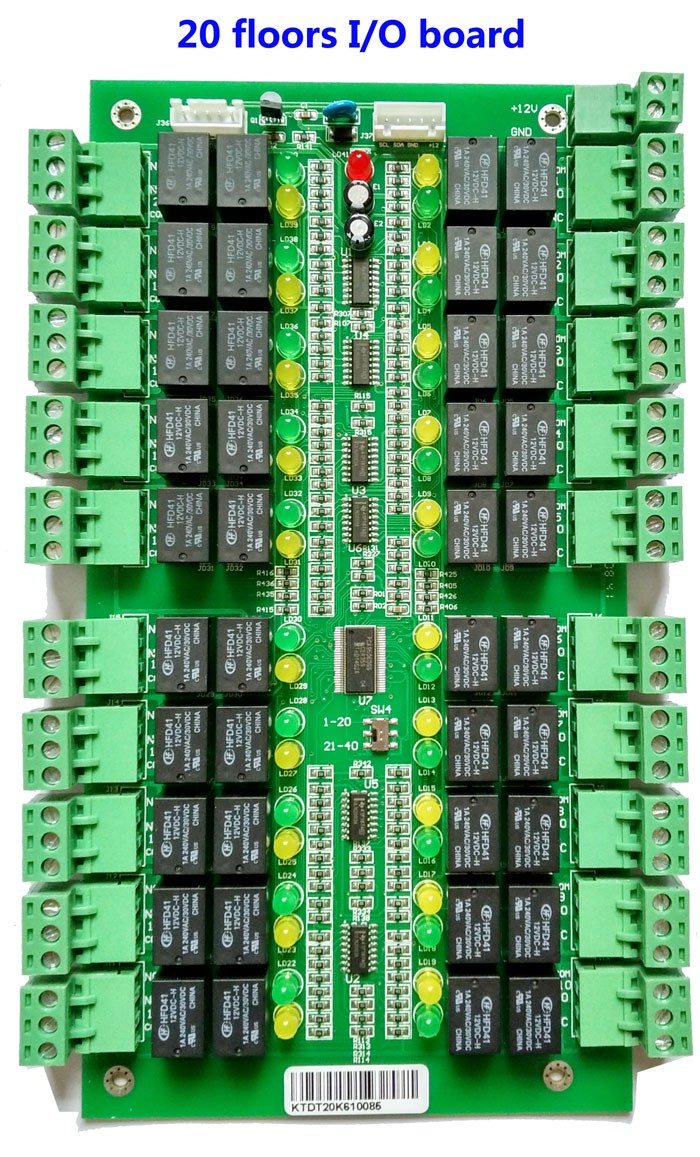

Models	DT20K extension board
Applicable	Must cooperate DT20 one-to-many controller, one DT20 controller board wcan work with two pcs DT20K extension panel.
Output	20 ways
Packing	Packing
Circuit board size	219 * 115 mm

Feature
• Only Authorised people use elevator.
• Secured and safe.
• Faster and easy floor selection with a card.
• Flexibility to move from floor to floor.
• Controls access / use of elevator by time of day and day of week(e.g. No restriction during
daytime and controlled usage by night.)
• All / selected floors can be access controlled.
• Selected floor can be Deactivated during certain hours. (e.g. during public functions, parties,
etc.)
• Simple electrical interface to any elevator.
• Power saving as un-necessary landing calls are avoided.
• Landing A/C optional
• Suitable for Duplex Elevator Controller
• Recording of elevator usage by cardholder with date and timestamp
• Every Transaction stored with date & time stamp
• Access by Card/ Card + PIN/ finger

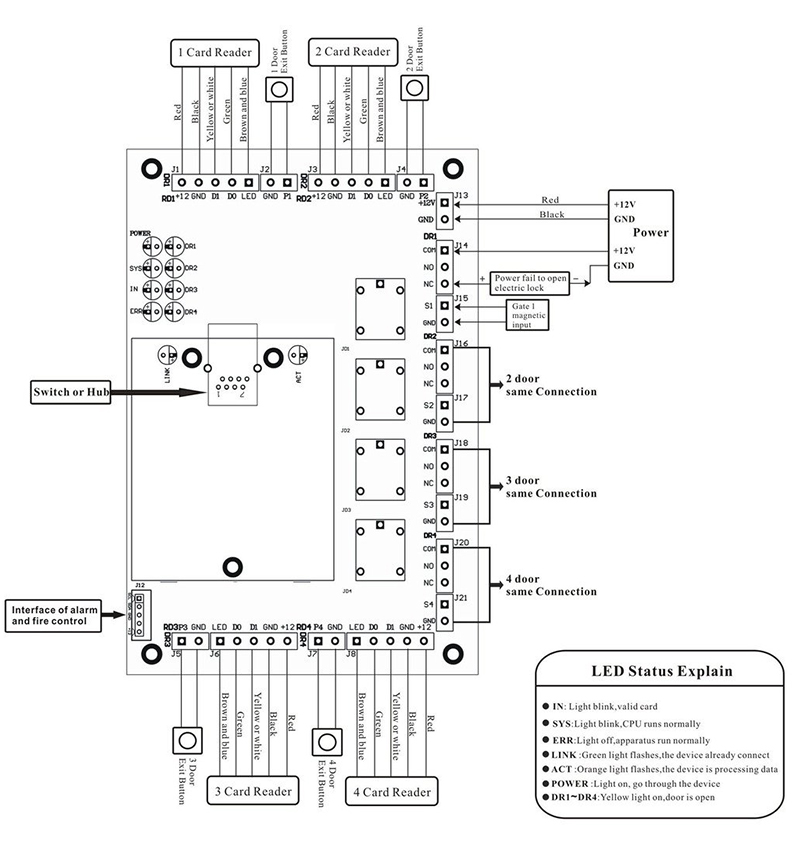

Wiring Diagram
