Model

Brand Positioning

Economical tcp/ip

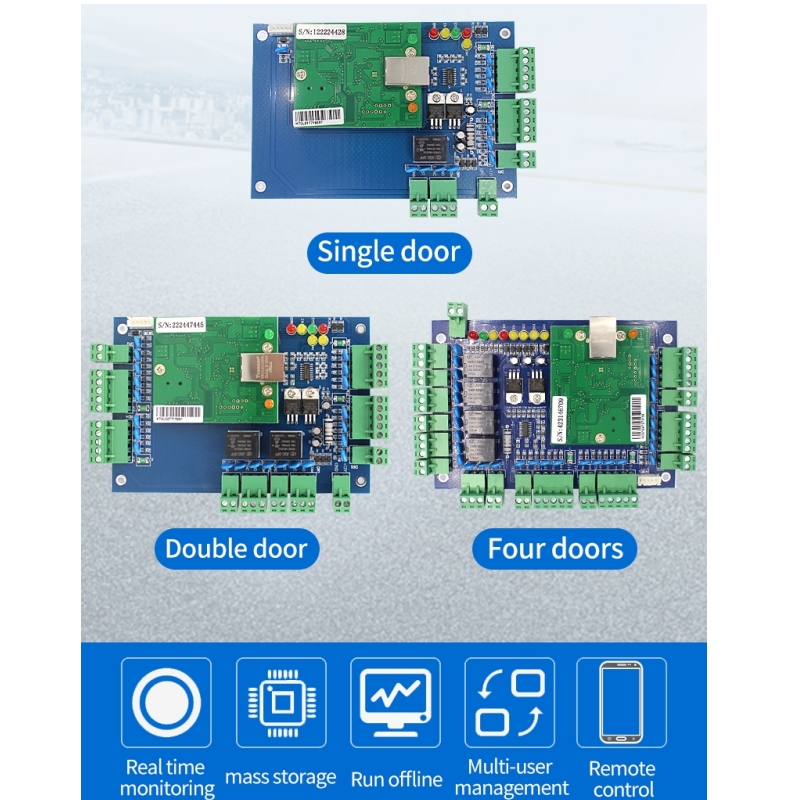

Function

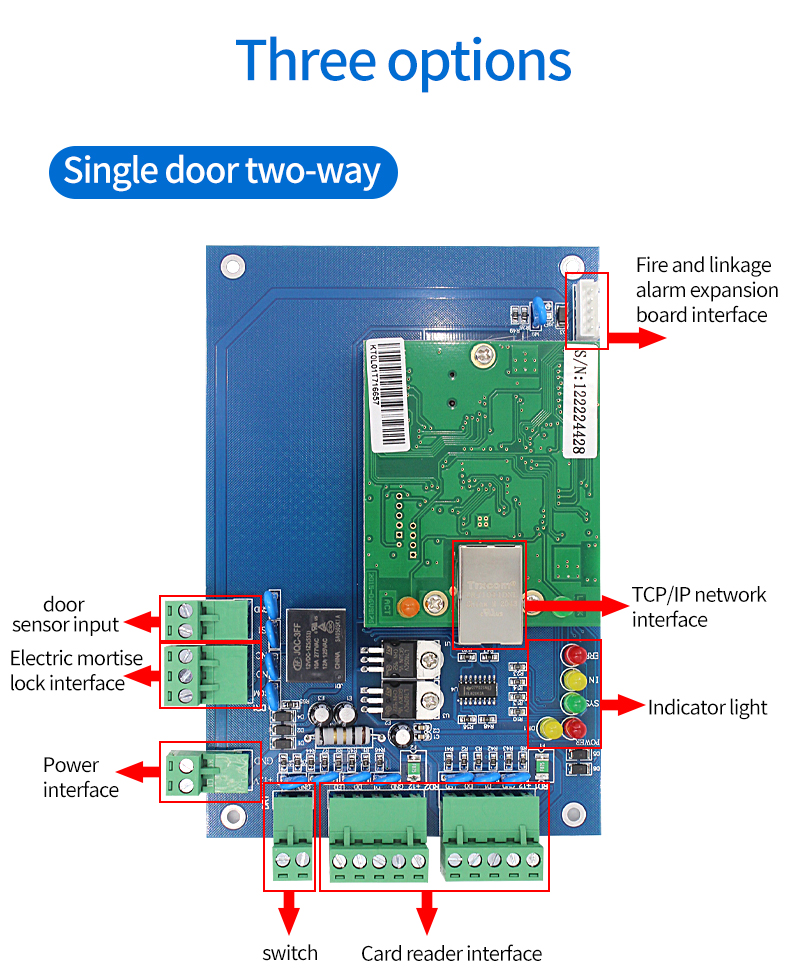

For 1 door entry by card and exit by push button or both by card

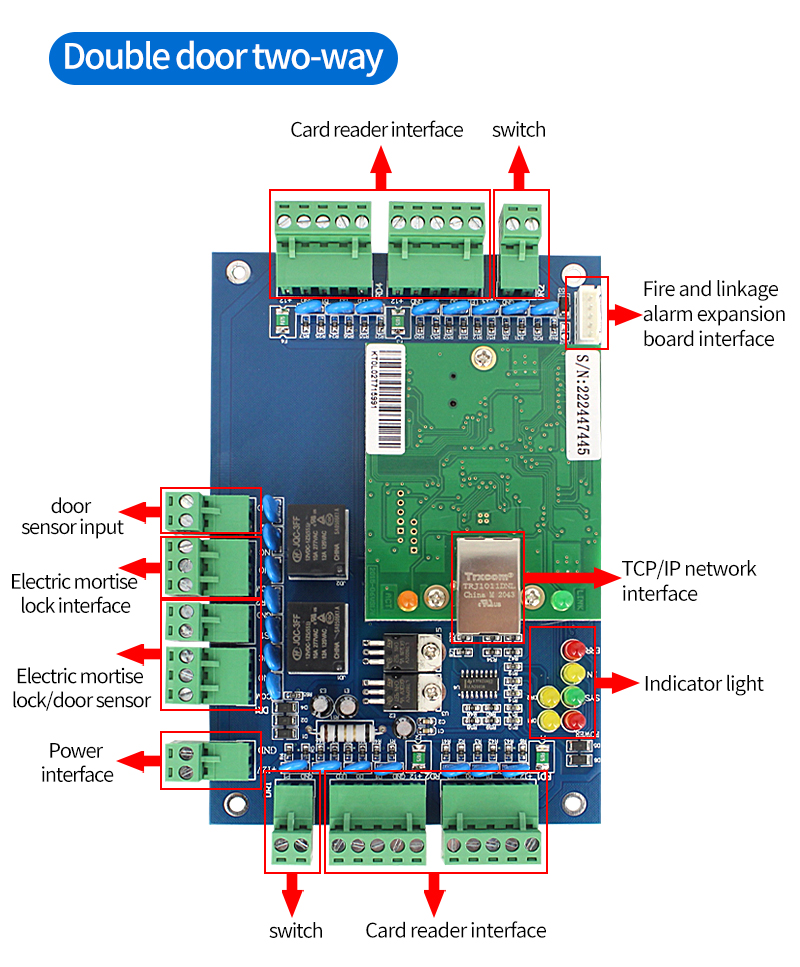

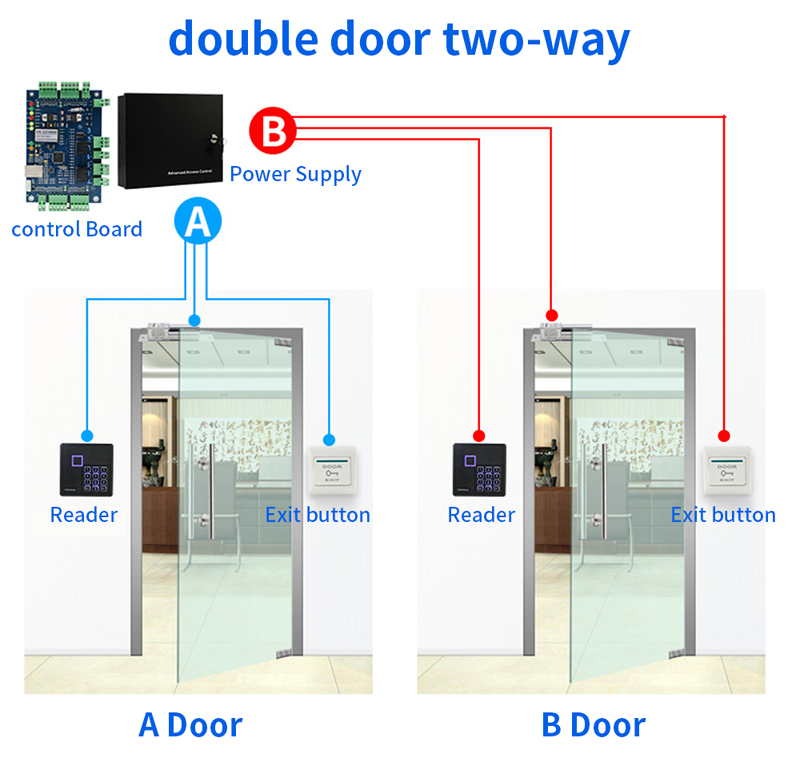

For 2 door entry by card and exit by push button or both by card

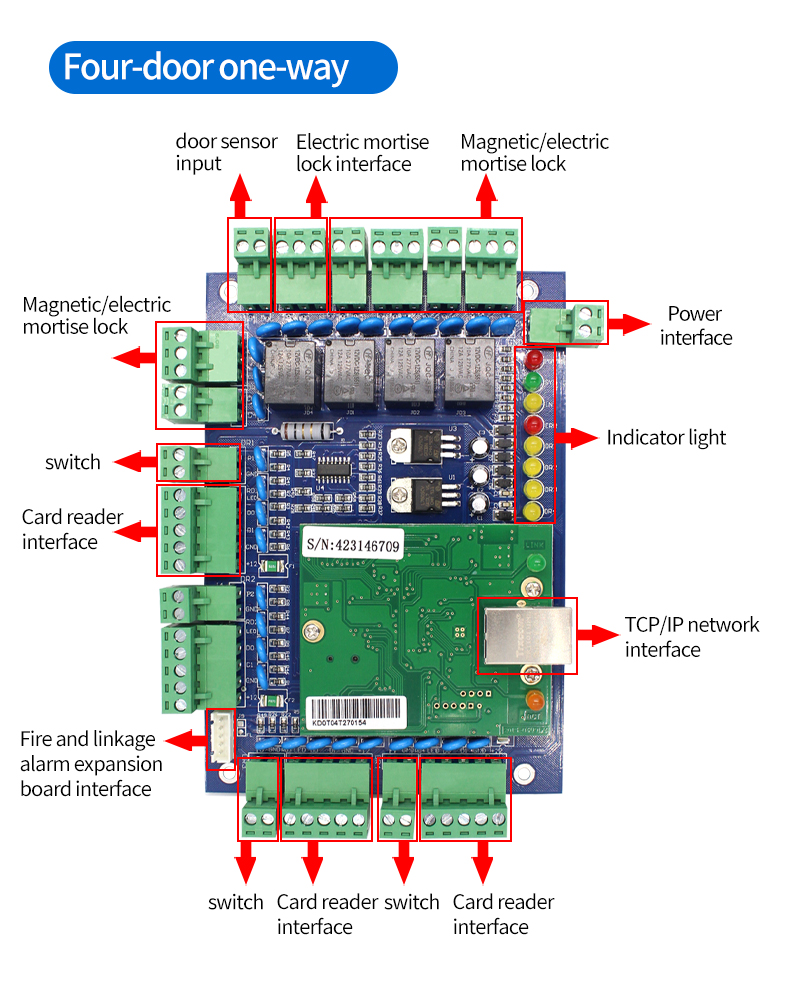

For 4 door entry by card and exit by push button

Size(mm)

160*106

160*106

160*106

Reader Capacity

1 pair

2 pairs

4 pairs

Power box

273*228*65mm 12V3-5A

Max Reed to controller distance

Within 100 meter and 80 meter is better

User Capacity

20,000

Record Capacity

100,000

Max Distance between controller

In the same LAN

Work environment

-35-40 degrees

Standard Function:

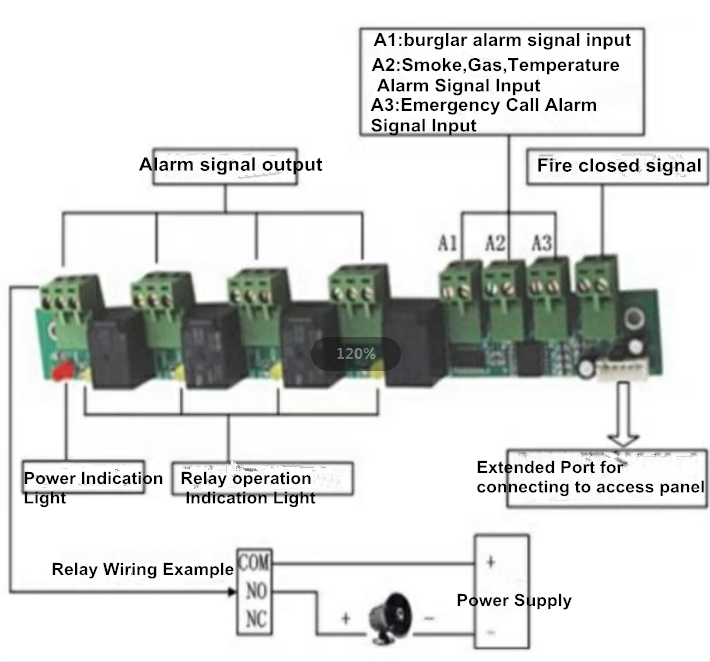

First card open,Multi card open, interlock,remote open,timing, fire alarm,threat alarm

Additional

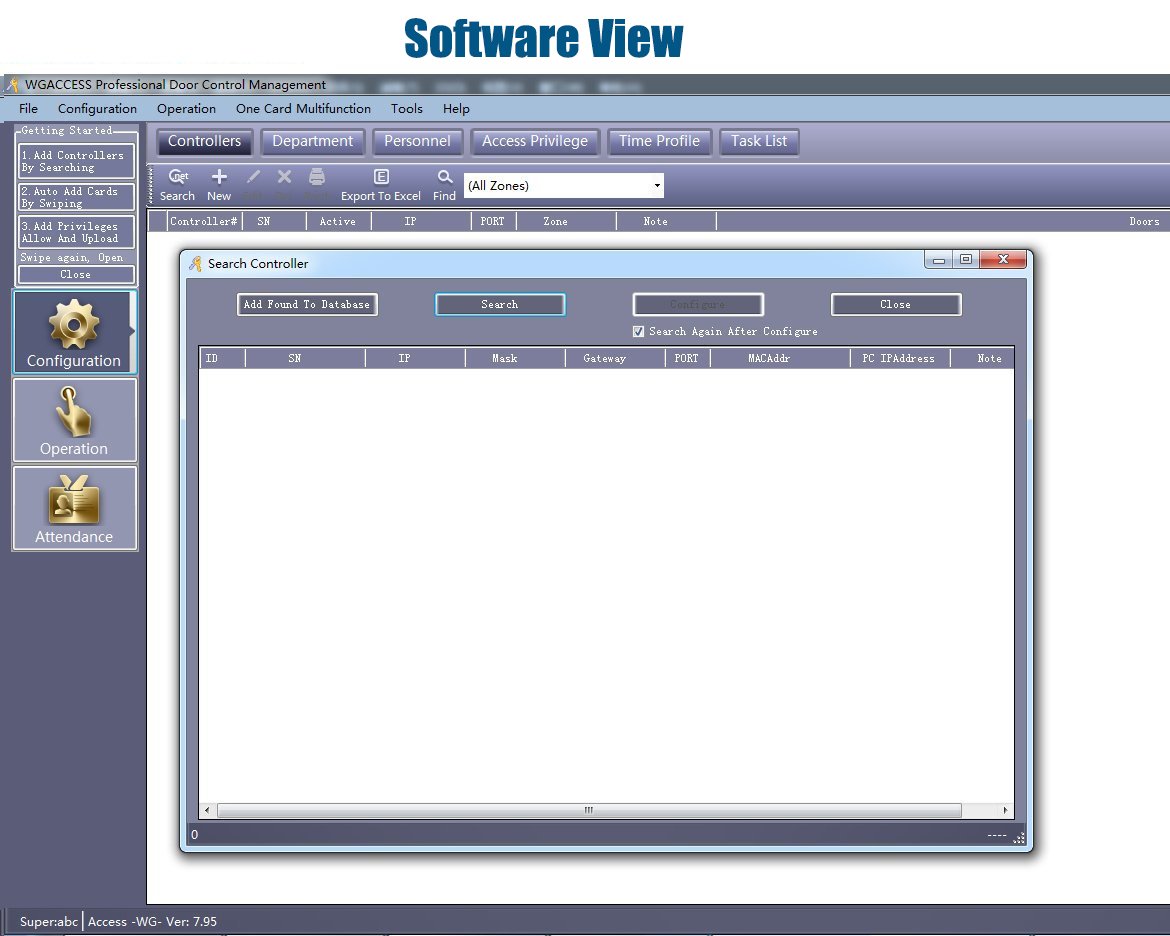

Web control (available in the same network ,LAN)
